DIGITAL FRICTION TESTER
@@
@Inclination method@DF-02@
”Features
Microcomputer control mode,
Adoption of high-output load cell,
Attached with data processing function, and
Equipped with standard printer.

”Outline

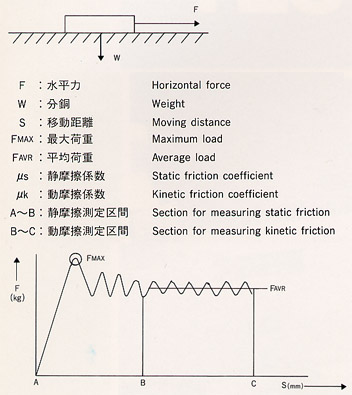

The contact resistance generating on starting a weight to move at a constant speed in the horizontal direction is sensed with load cell to digitally display the static and Kinetic friction coefficients.

”Measurement item
Static and kinetic friction coefficients,horizontal load,and average value.


œMeasurement section


œDigital display section and keyboard






”STANDARD SPEC
weight 2000gMAX:Measurable by 1g
Standard weight 1000g, 60x100mm, R3
Testing speed 5-500mm/min
Sample mount 120x320mm(330x360mm*)
Interface RS232C
Option Special weight,Remote control recorder
Power source AC100V, 30W
Size,Weight 475x405x330(H)mm,30kg
(700x500x330mm,48kg*)
